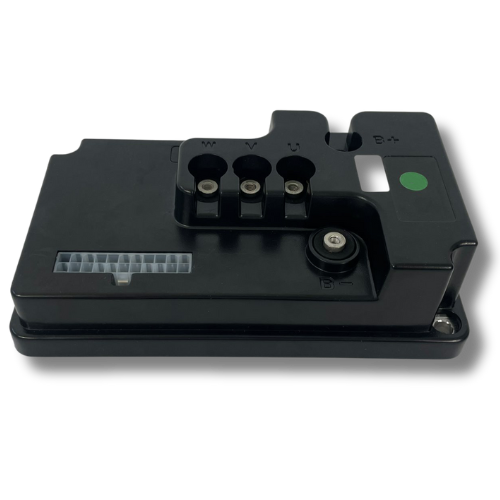

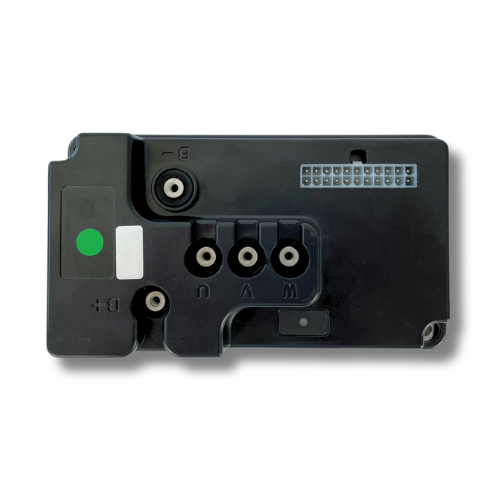

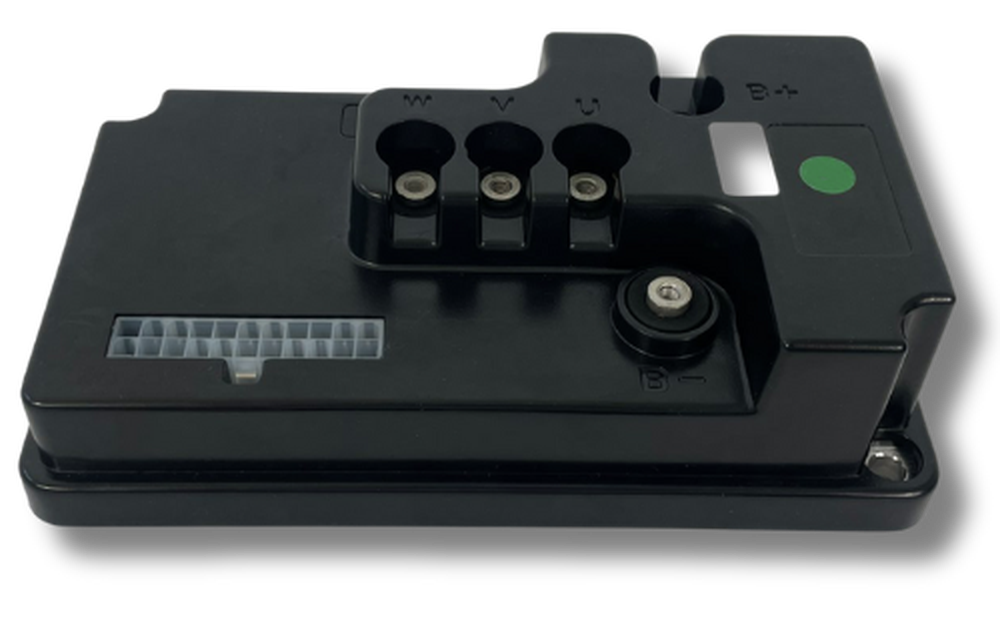

High performance in a compact format
Weighing just 0.70 kg, SPLIFT-M features a sophisticated field-oriented indirect vector control algorithm that ensures smooth and responsive motor management. The result? Precise, stable, and safe driving, even under variable loads or challenging operating conditions.
Versatility and reliability in every environment
SPLIFT-M is designed to operate within a power supply range of 24 to 48 VDC. Its specifications make it ideal for a wide range of applications:
Up to 90A current for 2 minutes
40A continuous current for one hour
Output frequency up to 200 Hz
Stable operation from -40°C to +50°C
The self-refrigeration system allows the device to cool itself autonomously, ensuring reliability even in challenging environments.
Security and connectivity first
SPLIFT-M complies with major European standards for safety and electromagnetic compatibility:
EN ISO 13849-1:2015 (functional safety)
EN 1175:2020 (control systems for electric industrial vehicles)
EN 12895:2015+A1:2019 (EMC)
Its IP65 protection rating makes it fully resistant to dust and moisture.
From a connectivity standpoint, the controller features native CAN BUS integration, ensuring full compatibility with devices such as:
AL50RC radio console
SPN5M I/O unit
Gateways for communication with web portals or external systems
Custom control with dedicated software
SPLIFT-M offers high software programmability, allowing precise adaptation of the controller’s behavior to the specific needs of the vehicle or application. Thanks to an intuitive interface, it is possible to optimize performance, security, and responsiveness, making the system flexible even for complex or highly customized solutions.
The excellence of ALMEC’s DC motor controllers
SPLIFT-M is part of the ALMEC DC motor controller range, designed to manage traction and steering on electric vehicles via CAN-bus or serial interface.
Compact, reliable, and highly configurable, it easily integrates into advanced electronic systems, representing a smart choice for building high-performing, safe, and connected electric vehicles.
For more information, contact us at info@almec.net.
